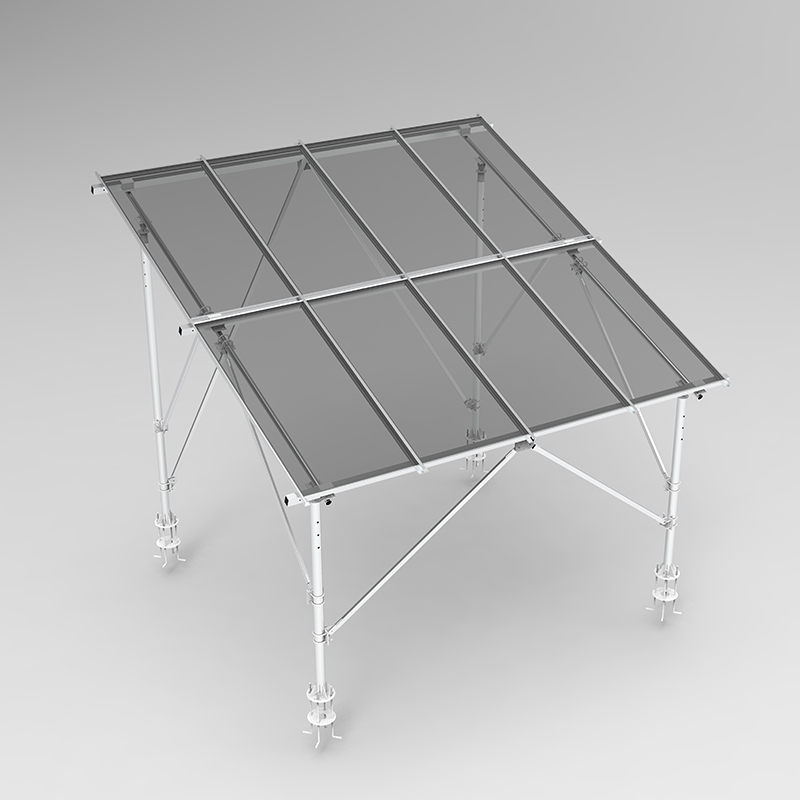

The Anti-theft Ground Solar Mounting System is a patented, elevated ground-mounted solution engineered for maximum security and durability in theft-prone environments. Developed exclusively by our company, this structure integrates special anti-theft pressure clamps that make it extremely difficult to remove solar panels without professional tools. Its elevated height design provides added ventilation, maintenance convenience, and performance optimization. This product is proven and trusted across South Africa, where security is a critical requirement in solar deployment.
Proprietary locking pressure blocks prevent unauthorized removal of panels. The system requires specialized tools to uninstall modules, acting as a powerful theft deterrent in high-risk regions.
Elevated Structure
Designed taller than conventional ground systems (up to 2.2m), which offers:
Better cooling and airflow under the modules
Easier cleaning and inspection
Room below for agricultural use or tool storage (agro-voltaics)
Rugged Durability
Built with hot-dip galvanized steel or anodized aluminum, the system is engineered to withstand harsh outdoor environments, including high UV exposure and coastal conditions.
Proven in South Africa
Highly popular among EPCs and distributors in South Africa due to its high theft-resistance and long service life.
Installation Steps
Step1: Site Survey & Foundation Setup
Prepare concrete bases or ground screws according to the soil type and load calculation
Step2: Install Upright Posts
Fix vertical support beams into the foundation with proper alignment and leveling
Step3: Attach Cross Beams & Rails
Secure horizontal support and module mounting rails onto the structure
Step4: Mount Solar Panels
Place panels and lock them with our anti-theft clamps—tightened using a custom hex tool only available to certified users.
Cases
Anti-theft Ground Solar System in South Africa
Ground Solar Struture Installation in Nepal
Why choose our Anti-theft Ground Solar Mounting System?
Exclusive design not available elsewhere
Proven security performance in high-risk environments
Stronger ROI with less panel loss and maintenance
Backed by 10+ years of solar mounting experience
Tested in the real-world conditions of South Africa
Overview
Exclusive Anti-theft Design
Proprietary locking pressure blocks prevent unauthorized removal of panels. The system requires specialized tools to uninstall modules, acting as a powerful theft deterrent in high-risk regions.
Elevated Structure
Designed taller than conventional ground systems (up to 2.2m), which offers:
Better cooling and airflow under the modules
Easier cleaning and inspection
Room below for agricultural use or tool storage (agro-voltaics)
Rugged Durability
Built with hot-dip galvanized steel or anodized aluminum, the system is engineered to withstand harsh outdoor environments, including high UV exposure and coastal conditions.
Proven in South Africa
Highly popular among EPCs and distributors in South Africa due to its high theft-resistance and long service life.
Installation Steps
Step1: Site Survey & Foundation Setup
Prepare concrete bases or ground screws according to the soil type and load calculation
Step2: Install Upright Posts
Fix vertical support beams into the foundation with proper alignment and leveling
Step3: Attach Cross Beams & Rails
Secure horizontal support and module mounting rails onto the structure
Step4: Mount Solar Panels
Place panels and lock them with our anti-theft clamps—tightened using a custom hex tool only available to certified users.
Cases
Anti-theft Ground Solar System in South Africa
Ground Solar Struture Installation in Nepal
Why choose our Anti-theft Ground Solar Mounting System?
Exclusive design not available elsewhere
Proven security performance in high-risk environments
Stronger ROI with less panel loss and maintenance
Backed by 10+ years of solar mounting experience
Tested in the real-world conditions of South Africa
Material
Hot-dip Galvanized Steel
AL6005-T5 Aluminum
Surface Treatment
HDG (≥80μm)
Anodized
Structure Type
Ground Mount (Fixed Tilt)
Special Feature
Anti-theft Pressure Clamp System
Height from Ground
Standard 1.5–2.2m (Customizable)
Tilt Angle
10°–40° (Adjustable)
Foundation Type
Concrete Base
Ground Screws
Ground Screws
Up to 60 m/s
Snow Load Resistance
Up to 1.5 KN/m²
Certification
ISO
SGS
CE
Warranty
10 Years
Service Life
25+ Years
{"json":"[{\"index\":\"0\",\"tran_label\":\"Material\",\"tran_value\":[\"Hot-dip Galvanized Steel\",\"AL6005-T5 Aluminum\"]},{\"index\":\"1\",\"tran_label\":\"Surface Treatment\",\"tran_value\":[\"HDG (≥80μm)\",\"Anodized\"]},{\"index\":\"2\",\"tran_label\":\"Structure Type\",\"tran_value\":[\"Ground Mount (Fixed Tilt)\"]},{\"index\":\"3\",\"tran_label\":\"Special Feature\",\"tran_value\":[\"Anti-theft Pressure Clamp System\"]},{\"index\":\"4\",\"tran_label\":\"Height from Ground\",\"tran_value\":[\"Standard 1.5–2.2m (Customizable)\"]},{\"index\":\"5\",\"tran_label\":\"Tilt Angle\",\"tran_value\":[\"10°–40° (Adjustable)\"]},{\"index\":\"6\",\"tran_label\":\"Foundation Type\",\"tran_value\":[\"Concrete Base\",\"Ground Screws\"]},{\"index\":\"7\",\"tran_label\":\"Ground Screws\",\"tran_value\":[\"Up to 60 m/s\"]},{\"index\":\"8\",\"tran_label\":\"Snow Load Resistance\",\"tran_value\":[\"Up to 1.5 KN/m²\"]},{\"index\":\"9\",\"tran_label\":\"Certification\",\"tran_value\":[\"ISO\",\"SGS\",\"CE\"]},{\"index\":\"10\",\"tran_label\":\"Warranty\",\"tran_value\":[\"10 Years\"]},{\"index\":\"11\",\"tran_label\":\"Service Life\",\"tran_value\":[\"25+ Years\"]}]","type":"2"}
FAQs
Q: What makes this system anti-theft?
A: It features special pressure clamps that cannot be loosened with standard tools. Only users with a custom hex bit can remove the clamps.
Q: Is this system only for South Africa?
A: No, it’s designed for any high-theft or public exposure area, including parts of Latin America, Africa, and rural Asia.
Q: Can I customize the height and angle?
A: Yes. Both ground clearance and panel tilt can be customized to meet project needs and sun path optimization.
Q: Is it hard to install compared to a normal ground system?
A: No. The structure is delivered with modular, pre-assembled parts, and installation follows standard steps—just with added anti-theft components.
Q: What’s the lead time for this system?
A: Typically 10–15 days depending on quantity and customization.
FAQs
Q: What makes this system anti-theft?
A: It features special pressure clamps that cannot be loosened with standard tools. Only users with a custom hex bit can remove the clamps.
Q: Is this system only for South Africa?
A: No, it’s designed for any high-theft or public exposure area, including parts of Latin America, Africa, and rural Asia.
Q: Can I customize the height and angle?
A: Yes. Both ground clearance and panel tilt can be customized to meet project needs and sun path optimization.
Q: Is it hard to install compared to a normal ground system?
A: No. The structure is delivered with modular, pre-assembled parts, and installation follows standard steps—just with added anti-theft components.
Q: What’s the lead time for this system?
A: Typically 10–15 days depending on quantity and customization.
