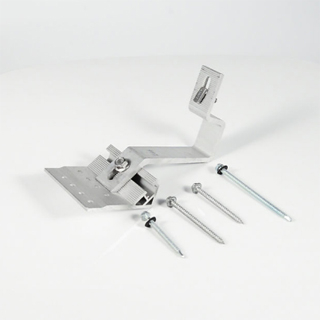

Aluminum Roof Hooks

Product Description

Flexible Due to Height and Side Adjustability

-Variable bar height in Roof Batten area: 41-50mm.

-Laterally adjustable in roof batten area.

-Height adjustment in rail area: up to 20mm.

Fully Preassembled

-47x37 and 60x37 mounting rail can be fastened on roof hook without preparation.

Maximum load values

-Pressure paralel to roof surface: 0.7kN.

-pressure perpendicular to roof surface: 1.5kN.

-Tensile force parpendiculor to roof surface:-1.5kN.

-without suppport on roofing tile.

Product Features

Lightweight design: reduces roof burden, suitable for metal roofs

Height adjustment: height can be adjusted according to roof structure to meet different installation requirements

Maximum load: can withstand 0.7kN parallel roof pressure and 1.5kN vertical roof pressure

Long-term use: provides long-term stability and durability

FAQs

Q: What is the packing method?

A: Usually we use shrink film or kraft paper, can also make according to customer requirements.

Q: What is the payment terms?

A: Usually by T/T, 50% deposit, the balance paid before shipment, L/C is also acceptable.
